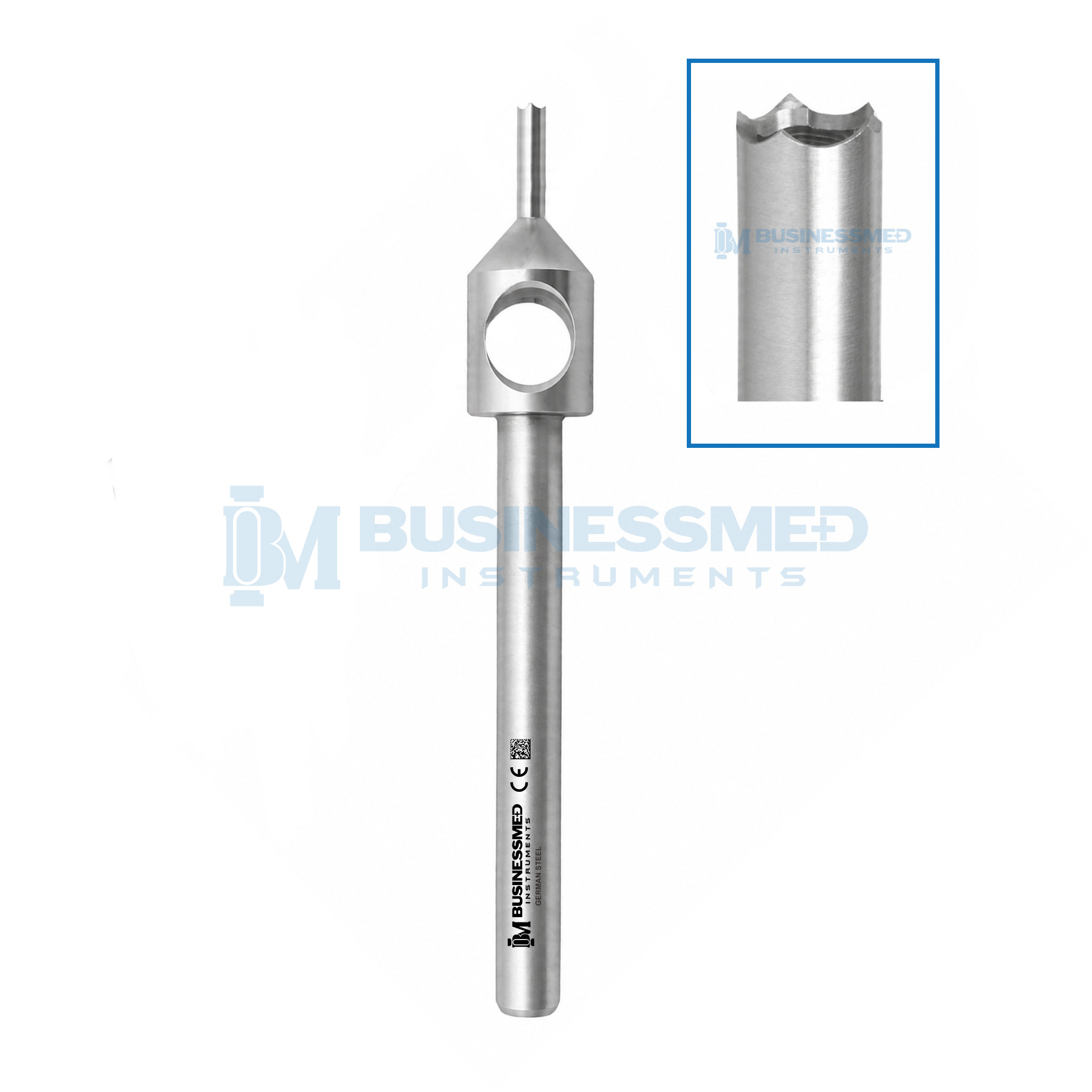

SERRATED FUE PUNCH

Hair Transplant Harvesting Punch for FUE Donor Graft Harvesting at the Occipital and Temporal Scalp

Serrated FUE Punch is a follicular unit extraction punch in the cutting and dissecting instruments category, manufactured by BusinessMed Instruments® for use in Hair Restoration Surgery, Plastic Surgery, and Dermatology.

Serrated FUE Punch scores the perifollicular fibrous sheath and outer root sheath, the follicular unit dermis and subdermal adipose layer, and the infundibular portion of the hair follicle and sebaceous gland ostium at the donor safe zone (occipital and temporal scalp) during Follicular Unit Extraction (FUE), Donor Graft Harvesting, and Hair Transplant Surgery, advancing to the depth of the follicular bulge region.

Serrated Circumferential Cutting Edge and Dissection Plane Control

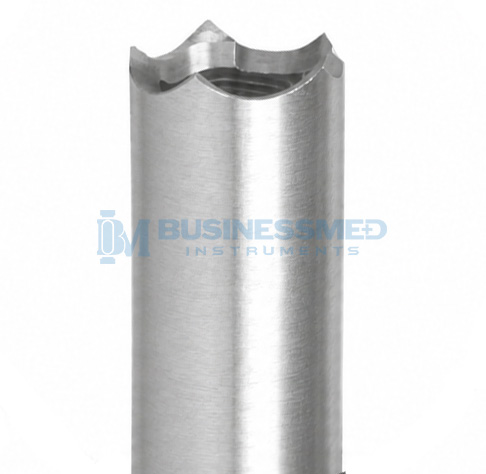

The Serrated Circumferential Cutting Edge with Micro-Tooth Serrations grips the scalp dermis during motorized rotation, preventing lateral displacement of the punch on the curved scalp surface. Micro-tooth serrations initiate localized collagen remodeling with less tearing than a blunt punch and greater surface control than a sharp punch on a curved tissue plane. The Internal Beveled Bore for Atraumatic Follicle Dissection then maintains the dissection plane along the follicular unit without lateral compression as the Sharp Inner Bevel for Follicle Isolation advances to the follicular bulge region depth. Where surgeons require confirmation of full circumferential scoring before applying extraction force, the extraction readiness decision point is the mechanism by which punch efficiency and per-graft scoring time directly affect patient outcome.

Follicular Transection Risk and Punch Wound Outcome

Circular punch wounds of 0.7–1.3 mm heal by secondary intention; complete epithelialization occurs within 5–7 days, and sub-millimeter circular scars are clinically imperceptible at correct extraction densities. Follicular transection — partial or complete severing of the dermal papilla of the hair follicle or follicular bulge region during punch scoring — renders the graft non-viable. The accepted transection rate for experienced FUE surgeons is ≤5%; rates above 15% indicate technique error or punch mismatch. Optimal graft implantation is within 2–4 hours of extraction; viability is maintained to 6–8 hours in chilled HypoThermosol.

Clinical Uses and Applications

• The perifollicular fibrous sheath and outer root sheath are circumferentially scored at the donor safe zone (occipital and temporal scalp) during Follicular Unit Extraction (FUE) to establish the donor graft harvesting dissection plane.
• The follicular unit dermis and subdermal adipose layer are dissected to the depth of the follicular bulge region during Donor Graft Harvesting and Hair Transplant Surgery to reach the extraction readiness decision point.
• The infundibular portion of the hair follicle and sebaceous gland ostium are scored at the epidermal entry point during FUE in Hair Restoration Surgery, Plastic Surgery, and Dermatology to initiate circumferential dissection.
• The dermal papilla of the hair follicle and inner root sheath are isolated within the internal beveled bore during FUE donor graft harvesting to confirm extraction readiness without follicular transection.
• Tip diameter 0.7–0.85 mm is matched to fine and Asian hair follicular units in FUE and Hair Transplant Surgery; tip diameter mismatch is a documented independent cause of follicular transection.
• Tip diameter 0.9–1.1 mm is matched to coarse and multi-hair grafts in FUE and Hair Transplant Surgery where larger follicular unit caliber requires a wider circumferential scoring path.
• Donor safe zone follicular unit density is assessed in the pre-punch phase of FUE to determine extraction pattern and avoid over-harvesting in Hair Restoration Surgery.
• Progressive cutting edge dulling through repeated clinical use is an independent cause of follicular transection in FUE; punch replacement or sharpness assessment precedes each session to maintain a transection rate at or below ≤5%.

Associated Instruments

• Motorised FUE handpiece (micromotor drive) — used in FUE donor graft harvesting with this punch via 2.35 mm (3/32") collet/chuck mount
• FUE extraction forceps (fine-tip jeweller’s-style) — used in FUE donor graft harvesting for atraumatic retrieval of the scored follicular unit
• Trichoscope / dermatoscope — used in FUE donor zone assessment for follicular unit density and calibre evaluation
• Tumescent infiltration cannula — used in donor scalp anaesthesia in the FUE operative context prior to punch scoring
• Graft holding tray with HypoThermosol or chilled saline — used in FUE for extracted graft viability maintenance during the implantation phase
• Recipient site punch or 18–21G needle — used in Hair Transplant Surgery for recipient channel creation
• Stereomicroscope (graft preparation station) — used in FUE for graft transection inspection prior to implantation
