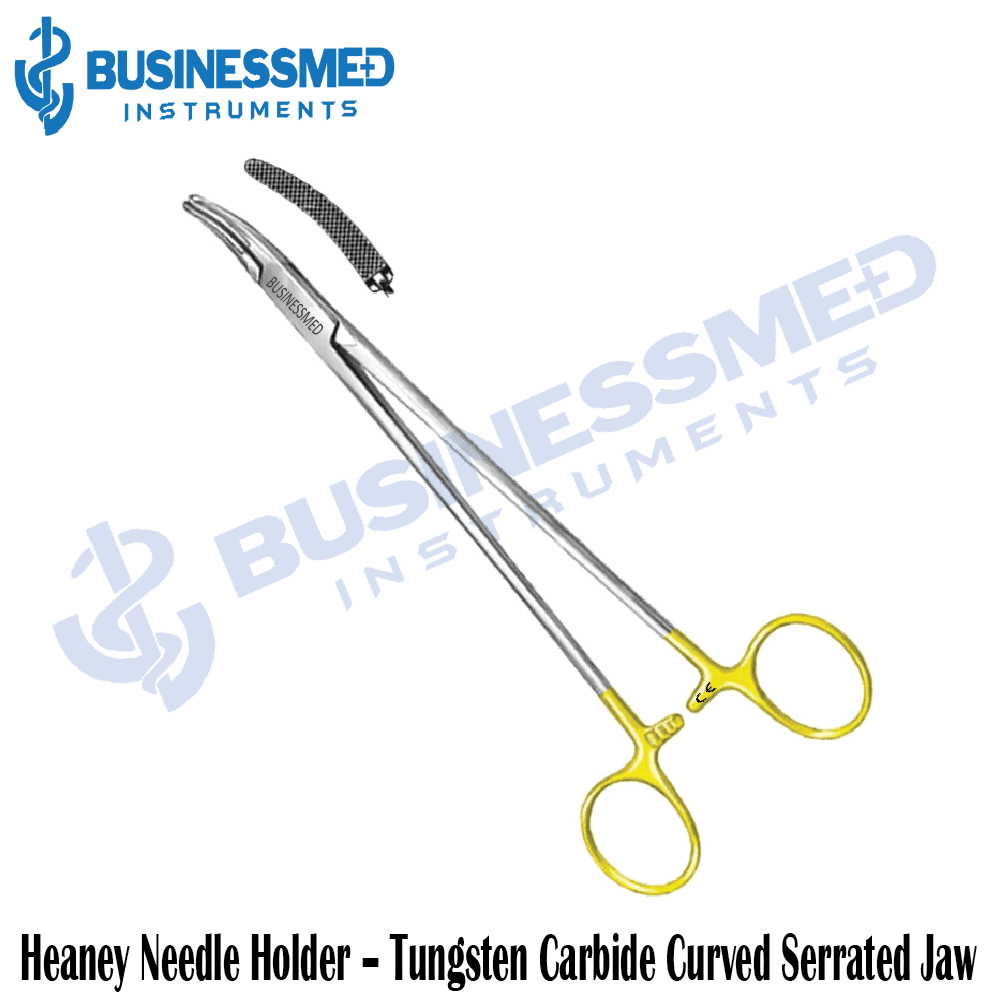

Heaney Needle Holder, Tungsten Carbide (Curved Serrated Jaw)

Price range: $42.99 through $72.99

BusinessMed® Heaney Needle Holder is a curved-jaw needle holder, also called a Heaney needle driver, with serrated tungsten carbide inserts, made in five lengths from 21.5 cm to 40 cm for suturing in vaginal and abdominal hysterectomy.

  • Curved jaws
  • Cross-serrated tungsten carbide inserts
  • Locking ratchet
  • Box lock joint and finger-ring handles
In stockShips in 3–4 business days
Description

BusinessMed® Heaney Needle Holder is named after Noble Sproat Heaney, MD, the American gynecologist whose name is also carried by the Heaney clamp and Heaney retractor. The curve of the jaws lets the surgeon approach tissue at an angle and keep the needle tip in view, which is why the Heaney pattern is a standard needle holder for hysterectomy.

Key features of the Heaney needle holder

  • Tungsten carbide inserts: the cross-serrations hold the needle without rotating, and the carbide faces resist wear far longer than plain stainless steel jaws.
  • Locking ratchet: keeps the jaws closed on the needle without constant hand pressure between passes.
  • Box lock joint: keeps the jaws aligned through repeated opening and release.
  • Gold-plated ring handles: mark the holder as tungsten carbide, so it is easy to pick out on the instrument tray.

What is a Heaney needle holder used for?

  • Vaginal hysterectomy: suturing ligament pedicles and closing the vaginal cuff through the vaginal approach.
  • Abdominal hysterectomy: suturing the pelvic ligament pedicles and the cuff in the deep pelvis.
  • Other deep-cavity suturing: light to medium weight sutures wherever a curved, carbide-faced holder improves access and view.

Heaney needle holder specifications

AttributeSpecification
Manufacturer / BrandBusinessMed Instruments®
Author / InventorNoble Sproat Heaney, MD
Instrument TypeHeaney Needle Holder with Tungsten Carbide Inserts
Product TypeCurved-Jaw Tungsten Carbide Needle Holder
Product CategoryPlastic Surgery Instruments
Sub-CategoryPlastic Surgery Needle Holders
Surgical DisciplinesObstetrics & Gynecology, Gynecologic Surgery, General Surgery
Procedural IndicationVaginal Hysterectomy, Abdominal Hysterectomy
Anatomical TargetVaginal Cuff, Pelvic Ligament Pedicles, Pelvic Fascia, Peritoneum
Design/ShapeCurved Jaw Body with Tungsten Carbide Inserts, Box Lock Joint, Finger-Ring Handles, and Locking Ratchet
GeometrySlightly Curved Jaw Axis for Angled Needle Approach in Deep Fields
Suture Size RangeLight to Medium Weight Sutures
Jaw ShapeCurved
Jaw ProfileCross-Serrated Tungsten Carbide Insert Faces
TC InsertsYes
Working End DetailPaired Curved Jaws with Cross-Serrated Tungsten Carbide Gripping Inserts
Handle TypeGold-Plated Finger-Ring Handles
Box LockBox Lock Joint
Ratchet ConfigurationLocking Ratchet
Available Lengths21.5 cm (8.5 in), 25.5 cm (10 in), 31 cm (12.2 in), 35 cm (13.8 in), 40 cm (15.7 in)
MaterialGerman Stainless Steel
FinishSatin / Non-Reflective
SterilityNon-Sterile
ReusableYes (Autoclavable & Sterilizable)
Warranty5-Year Warranty

Heaney needle holder variants

LengthSKU
21.5 cm (8.5 in)57-022-05
25.5 cm (10 in)57-022-04
31 cm (12.2 in)57-022-03
35 cm (13.8 in)57-022-02
40 cm (15.7 in)57-022-01

Choosing a Heaney needle holder length

21.5 cm is the standard length for vaginal surgery. 25.5 cm adds reach for deeper pelvic work. 31, 35 and 40 cm are for long-reach suturing in deep abdominal or pelvic cavities, where a standard holder cannot reach.

Shipping & Delivery

Dispatch
In-stock instruments leave our Sialkot facility within 3–4 business days of payment. Pre-order items ship within 15 business days.

Couriers and delivery time
We ship by DHL, FedEx, UPS, DPEX or DPD. Delivery usually takes 4–12 business days after dispatch, depending on the country. We email you the tracking number when your parcel is collected.

Shipping cost
Calculated at checkout from the destination and the weight of your order. Free shipping on orders over $299 to every country.

Customs duties and VAT
USA, EU and UK: we ship duty-paid whenever the courier and destination allow it, but we can't guarantee it for every parcel. Other countries: import duties and taxes are paid by the recipient on delivery.

Full details: Delivery Information. Questions: Support or [email protected].

RETURNS & REPLACEMENT
  • 30-day returns, from any country: return unused items in their original packaging within 30 days of delivery. You pay the return postage, and there is no restocking fee.
  • Damaged, wrong or missing items: send us your order number and photos within 7 days of delivery. We replace the item or refund you, and we pay the return shipping.
  • Faulty instruments: covered by our warranty, which is 5 years on stainless-steel instruments and 1 year on cables, lights and plastic parts. See Warranty and Services.
  • Not returnable unless faulty: custom-made, laser-marked or private-label items, and sterile or single-use items whose seal has been opened.

How to return: email [email protected] with your order number. We reply within 1 business day with a return (RMA) number and instructions. All returns go to our facility in Sialkot, Pakistan.

Full details, including the EU/UK consumer withdrawal right: Returns Policy · Refund Policy
