Bracket Height Gauge

Incisal-to-Slot Dimension Verification in Orthodontic Direct Bonding and Bracket Placement

The Bracket Height Gauge is a gauge / measuring instrument in the orthodontic instruments category, also known by the eponym Boone Gauge, manufactured by BusinessMed Instruments®. It is indicated for use in orthodontics and pediatric dentistry.

The Bracket Height Gauge measures the incisal-to-slot dimension at the labial surface of the clinical crown during direct bonding and bracket placement procedures. It establishes vertical bracket position relative to the facial axis (FA) point of the clinical crown in the pre-adjusted edgewise appliance workflow across orthodontic and pediatric dentistry applications.

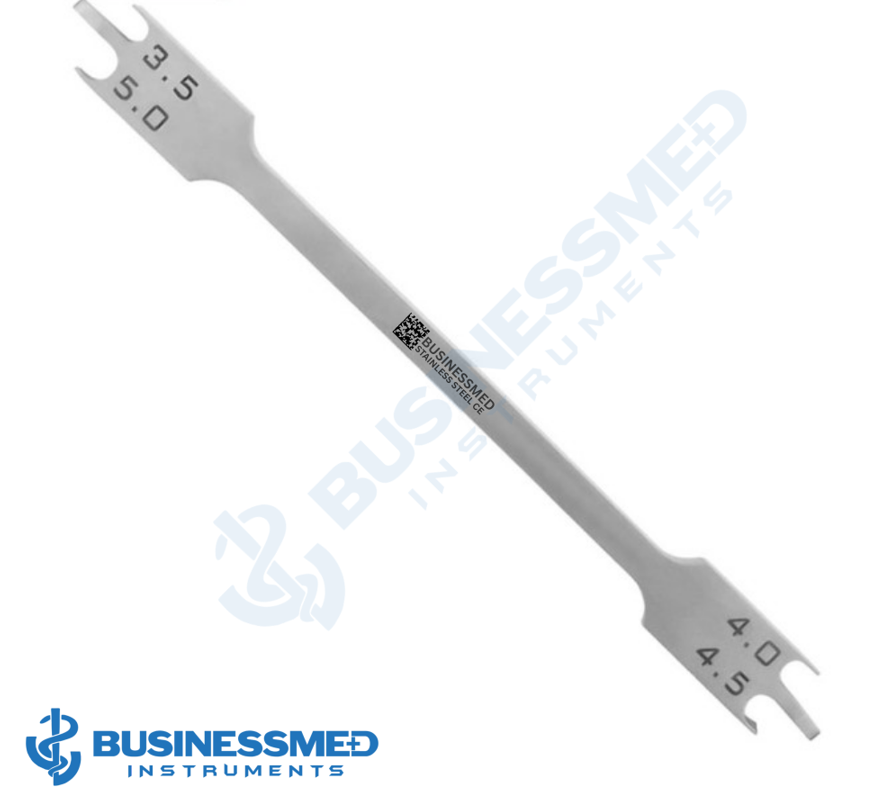

Four Fixed Arms

The Four Fixed Arms — set at 3.5 mm, 4.0 mm, 4.5 mm, and 5.0 mm incisal-to-slot heights — each contact the bracket slot at a fixed pre-set distance from the incisal edge or labial cusp tip reference point. Each arm confirms the incisal-to-slot dimension for the specific tooth type during the active bonding phase, after bracket seating and before adhesive polymerization. Arm selection is determined by the prescribed height value for the tooth being bonded.

Intraoperative Bracket Position Accuracy

Correct vertical bracket position at the facial axis (FA) point of the clinical crown preserves the intended torque prescription of the pre-adjusted edgewise appliance. A vertical deviation of greater than 0.5 mm from the FA point constitutes a clinically significant placement error. The Bracket Height Gauge enables the clinician to confirm or correct position before adhesive polymerization locks bracket location, preventing vertical errors that produce up to 10° torque variation per 1 mm of displacement and the downstream risk of external apical root resorption.

Clinical Uses and Applications

• The incisal-to-slot dimension at the labial surface of the clinical crown is verified during orthodontic direct bonding to confirm prescribed bracket height before adhesive polymerization.
• Vertical bracket position relative to the facial axis (FA) point is confirmed during bracket placement in the pre-adjusted edgewise appliance workflow to preserve the intended torque prescription.
• Bracket slot height is measured from the incisal edge or labial cusp tip reference point during direct bonding to allow bracket repositioning before the adhesive sets.
• Bracket placement accuracy is verified in pediatric dentistry bonding procedures across mixed and early permanent dentition to establish correct incisal-to-slot distances.
• Preoperative vertical position is confirmed after bracket seating and before light curing to prevent clinically significant placement errors exceeding 0.5 mm from the FA point.
• Bracket height is re-confirmed during reset appointments when vertical displacement errors require bracket removal and rebonding, reducing archwire compensatory bending requirements.
• Incisal-to-slot dimension is established across posterior teeth during bracket placement to prevent marginal ridge discrepancy and premature occlusal contacts post-treatment.

Associated Instruments

• Reverse-Action Bracket Placement Tweezers — used in orthodontic direct bonding procedure
• Orthodontic Scaler / Round Probe — used in orthodontic direct bonding procedure
• LED / Halogen Light Curing Unit — used in orthodontic direct bonding procedure
• Cheek Retractor — used in orthodontic direct bonding procedure
